Waveshare ESP32-S3 4inch Capacitive Touch Display Development Board V3(Latest Version), 480x480, 5-Point Touch, 32-bit LX7 Dual-Core Processor, Up To 240MHz Frequency, Support WiFi, Onboard Antenna

Marca: Waveshare
Nombre del modelo: ESP32-S3 4inch Capacitive Touch Display Development Board V3
Tamaño de memoria RAM instalada: 8,5 MB
Capacidad de almacenamiento de memoria: 16 MB
Velocidad de CPU: 240 MHz
Tecnología de conectividad: Wi-Fi, Bluetooth, RS485, I2C, USB
Sistema operativo: Linux
Fabricante de CPU: Cadence Design Systems
Dispositivos compatibles: Dispositivos USB, tarjetas TF
Tecnología de memoria RAM: SRAM, PSRAM

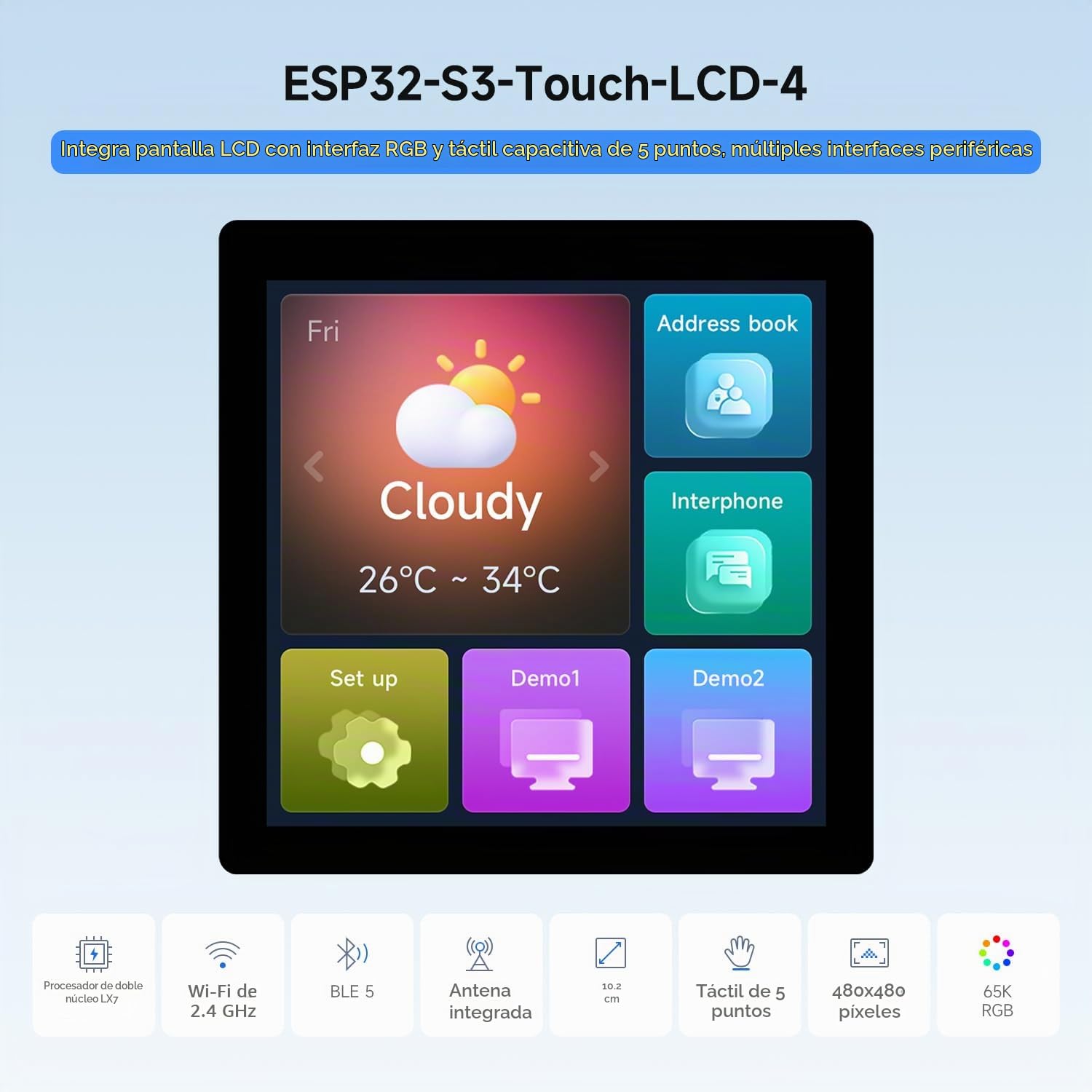

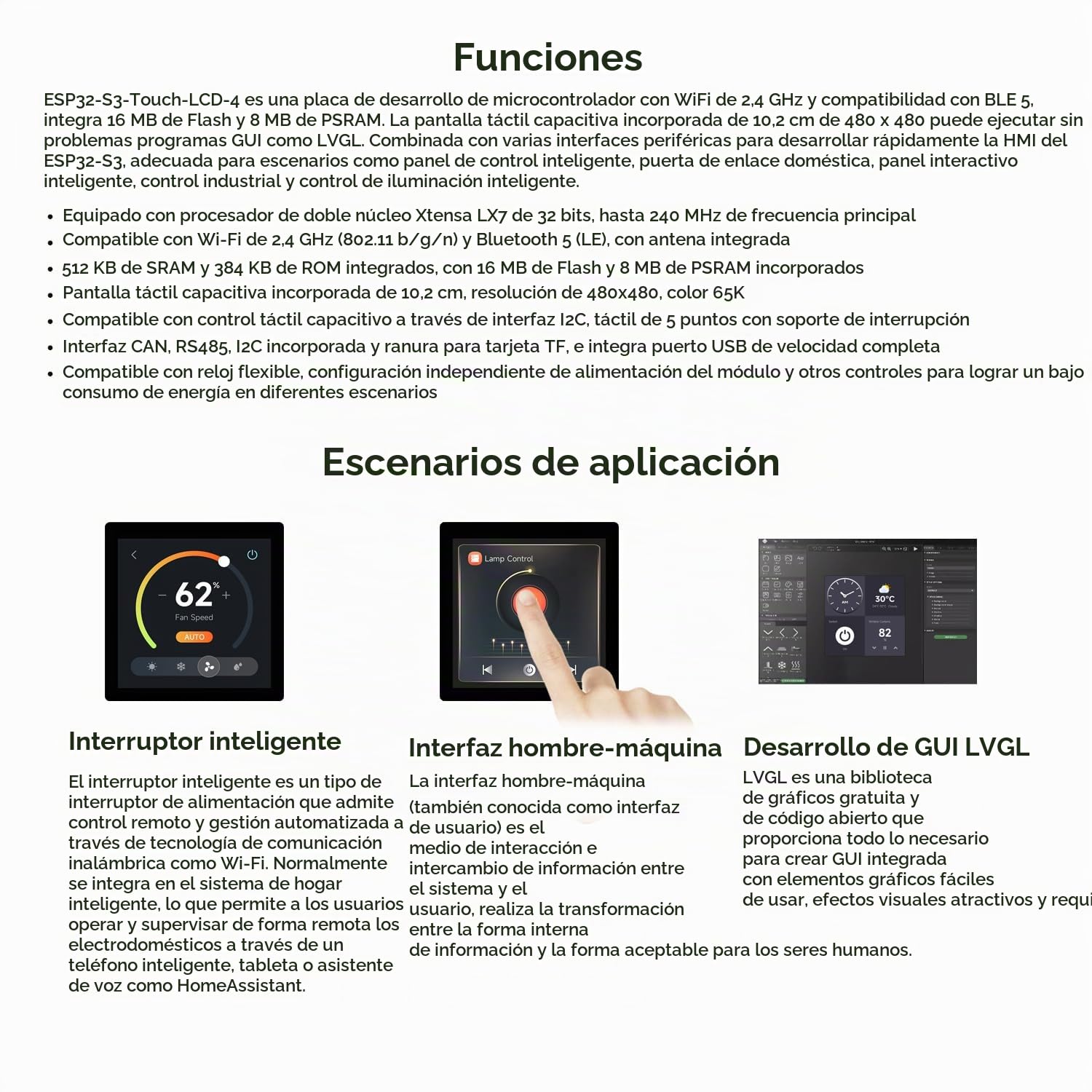

- ESP32-S3-Touch-LCD-4 is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM. Onboard 4inch 480 × 480 capacitive touch screen can smoothly run GUI programs such as LVGL. Combined with various peripheral interfaces to quickly develop the HMI of ESP32-S3, suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.
- Equipped with Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and BT5 (LE), with onboard antenna. Supports capacitive touch control via I2C interface, 5-point touch with interrupt support
- Built in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM. Onboard 4inch capacitive touch display, 480×480 resolution, 65K color. Features optimized RS485 solution, power isolation, TVS, and power supply.
- Onboard CAN, RS485, I2C interface and TF card slot, and integrates full-speed USB port
- Supports flexible clock, module power supply independent setting and other controls to realize low power consumption in different scenarios
