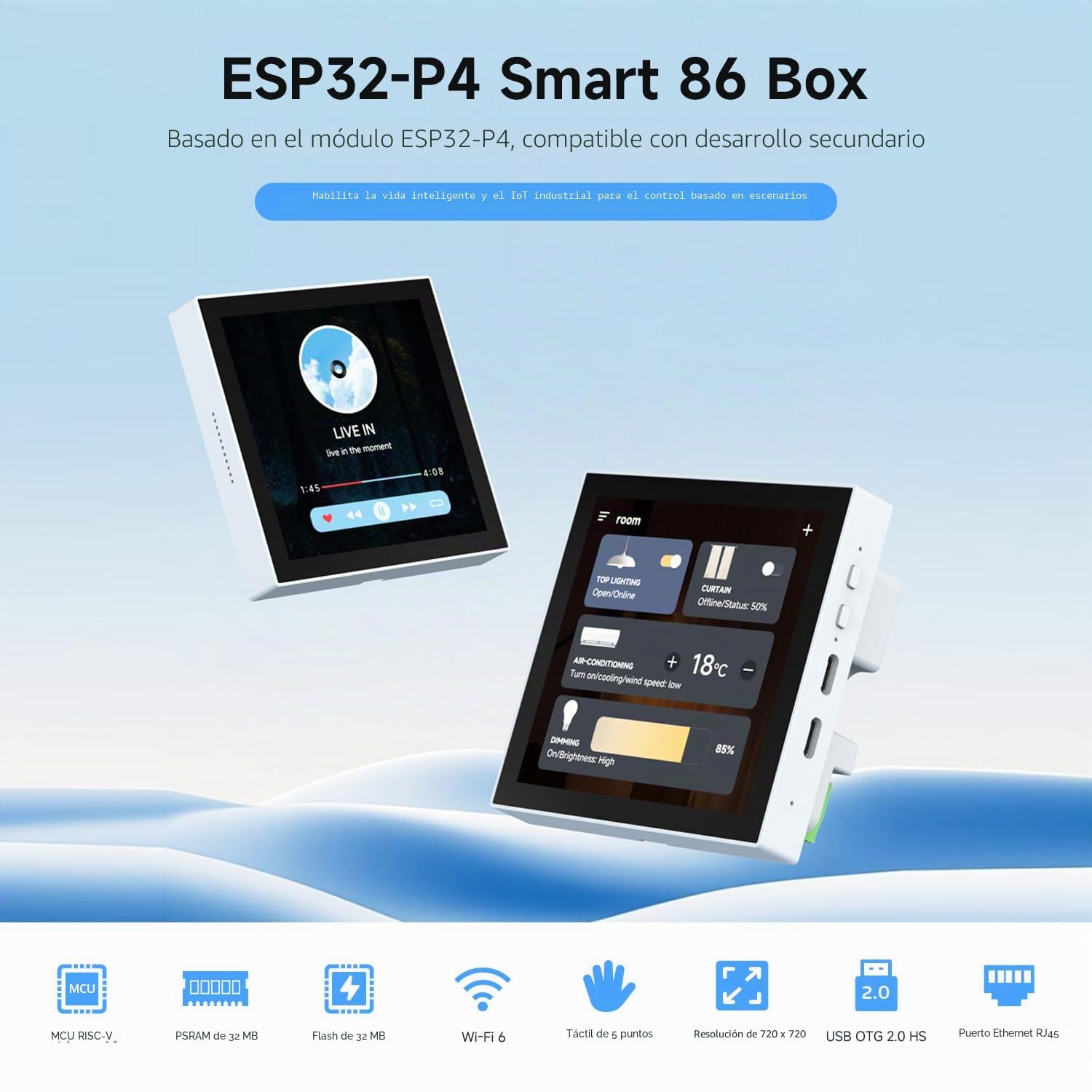

Waveshare ESP32-P4-WIFI6-Touch-LCD-4B(Support External Camera), ESP32-P4 Smart 86 Box, Dual-Core & Single-Core RISC-V, with 4inch 720x720 Pixel 5Point Touch LCD (Without Ethernet Port, RS485, Relays)

Marca: Waveshare
Nombre del modelo: ESP32-P4-WIFI6-Touch-LCD-4B
Tecnología de conectividad: USB 2.0 OTG, MIPI-CSI, MIPI-DSI
Sistema operativo: Linux
Fabricante de CPU: Espressif
Dispositivos compatibles: Teléfono inteligente, Ordenador personal, Cámara, Altavoces
Tecnología de memoria RAM: LPDDR4X
Recuento de procesadores: 2
Número de paquetes: 1
Número de productos: 1

- ESP32-P4-WIFI6-Touch-LCD-4B (support external camera) is powered by a high-performance MCU featuring a 32-bit dual-core and single-core RISC-V processor (without Ethernet Port,RS485,and Relays)
- It includes 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, and 8KB TCM. The chip package incorporates 32MB PSRAM and is externally paired with 32MB Nor Flash.
- Strong image and voice processing capabilities, with interfaces including a JPEG codec, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP), and H.264 video encoder.
- The board features commonly used peripheral interfaces such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 Micro SD card slot, dual microphones with echo cancellation support, speaker terminals, and RTC battery terminals (specific interfaces vary by product; refer to the resource overview).
- Supports secure boot, Flash encryption, hardware encryption accelerators, and hardware random number generators. It also features hardware access protection, enabling Access Permission Management (APM) and privilege separation.
